BALANCED WEIGHT DISTRIBUTION
Because of the forward mounting of the power train, and the skidders ability to
carry the log load well forward on the machine, the combined weight of the
vehicle and its payload is spread over the entire length of the tracks.
TORSION BAR SPRUNG SUSPENSION
Ten torsion bars attached individually to roadarms provide the sprung
suspension. Each set of road wheels can move up and down independently, there-by
allowing the tracks to conform to uneven surfaces.
HIGH SPEED STEEL TRACK (HSST)
Cast Steel track pads, connected with patented rubber-bushed steel pins, permit
track flexibility while preventing metal-to-metal wear and track contamination
from soils.

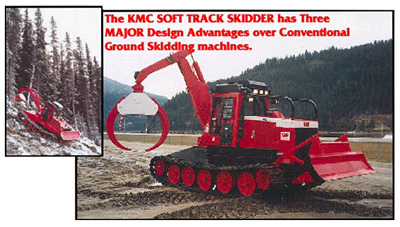

The KMC 2600 is a more versatile skidder, equipped with a swinging boom skidding grapple. Able to pick up loads on either side of the machine and well to the rear, the KMC 2600 is particularly effective on steep slopes, wet and muddy areas, or on sensitive soils. The 2600 is better suited to hand-felled wood than the conventional Model 2500 Fixed Arch Grapple. Excellent productivity with pre-bunched wood on Steep Slopes or Wet Ground.
The Swing Grapple can help maneuver logs around standing trees and be used to shift the weight of the machine when working on very soft ground or steep slopes. Bringing the load forward onto the machine aids in balancing the weight distribution which results in better traction, higher speeds, greater productivity and consistent low Dynamic ground pressure.
KEY OPERATIONAL DATA
Maximum Payload: 30,000lbs (13,605kg)
Maximum Weight on Vehicle: 18,000lbs (8,163kg)
Gross Vehicle Weight: 37,180lbs (16,862kg)
Ground Pressure: 6.40psi at 0 soil penetration, 5.79psi at 6 soil penetration
Grapple: Young Model 172 with 90" bunching tongs
PRIME APPLICATIONS
Steep Slopes
Broken Ground
Wet or Boggy Areas
Sensitive Soils
Special Management Zones
INTEGRATES WELL WITH
Wheel Skidders
Clam Bunks/CTL
Cable Yarders
2000 SERIES SPECIFICATIONS
POWER TRAIN
Engine: Standard - Cummins 6BTA5.9 174HP
Option - John Deere 6068T 185HP (for John Deere
Dealers)
Transmission: Clark HR28420-7, 4 Speed Powershift
Final Drive: Planetary
Fuel Tank Capacity: 45 to 70 gal (205 to 318L)
BRAKES - 3 SYSTEMS
Service: Hydraulic, oil cooled multiple disk in transmission
Differential: Hydraulic steering levers, when pulled back simultaneously
Parking: Manual, transmission mounted
GAUGES AND INSTRUMENTS
Engine: rpm, hours, coolant temperature, oil pressure
Transmission: oil temperature, oil pressure
Differential: oil temperature
Battery: amp meter
Other: low fuel, parking brake
BLADE OPTIONS
Standard decking
4 way tilt
6 way tilt/angle - brush rake or snow plow only
CAB OPTIONS
Screened, half doors
Screened, full doors
Fully Enclosed, sound suppressed
SEAT OPTIONS
Standard bucket type
Suspension, swivel, high back c/w joystick controls
UNDERCARRIAGE
Suspension: Torsion Bar Sprung, independent road wheels
Road Wheels: 100% Cast Steel, 5 sets of Dual Wheels per side, 24" (610mm) dia.
Track: Manganese Alloy Cast Steel with Rubber - Bushed Pins, 22" (559mm) wide
Sprockets: Hardox 400 steel
MAXIMUM TRAVEL SPEED
1st Gear: 2.2 mph/3.54 kph
2nd Gear: 4.6 mph/7.40kph
3rd Gear: 8.0 mph/12.87 kph
4th Gear: 14.5 mph/23.33 kph
ADDITIONAL STANDARD EQUIPMENT
oil cooler for differential and transmission
two stage air cleaner
windshield wiper and washer
fire extinguisher (2 x 5lb)
horn and back-up alarm
tool box and tools: track jacks, road arm lifter, slide hammer and pin punch
operator/service manual and parts books
LIGHTING OPTIONS
Basic - 2 Front and 2 Rear
Deluxe - 6 Front and 6 Rear
ADDITIONAL OPTIONAL EQUIPMENT
AM/FM cassette stereo
Air conditioning or cab pressurizer
High output heater - 20,500 BTU
WINCH OPTIONS (not available for
Swing Grapple)
LufkinWD413 - 40,000lb
John Deere Model 40 or 60, 40,000lb or 60,000lb
